Overview

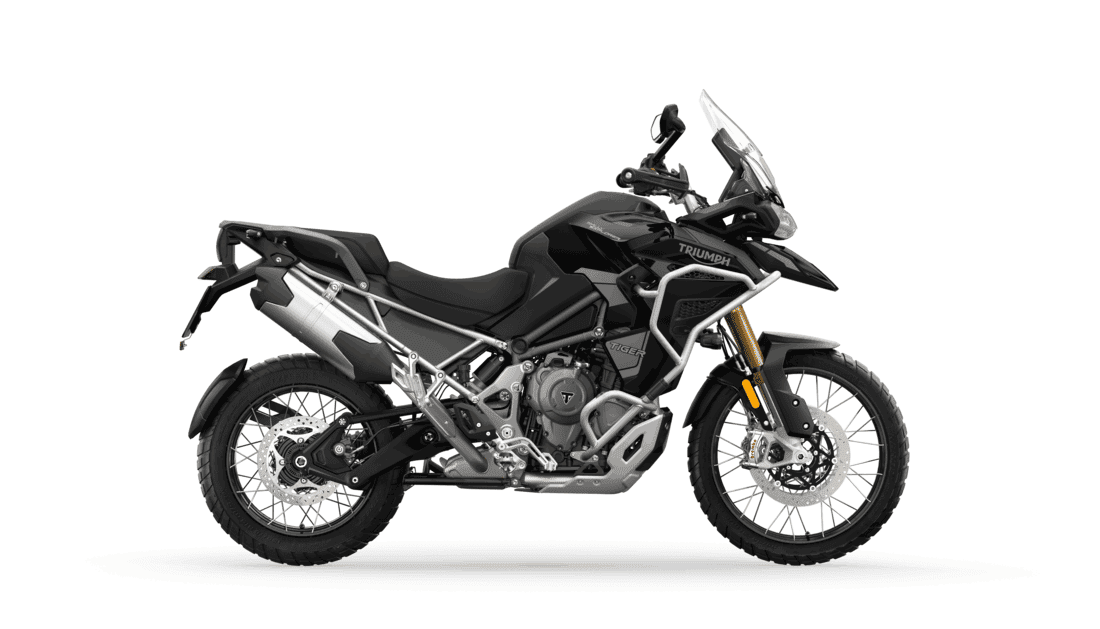

Jet Black

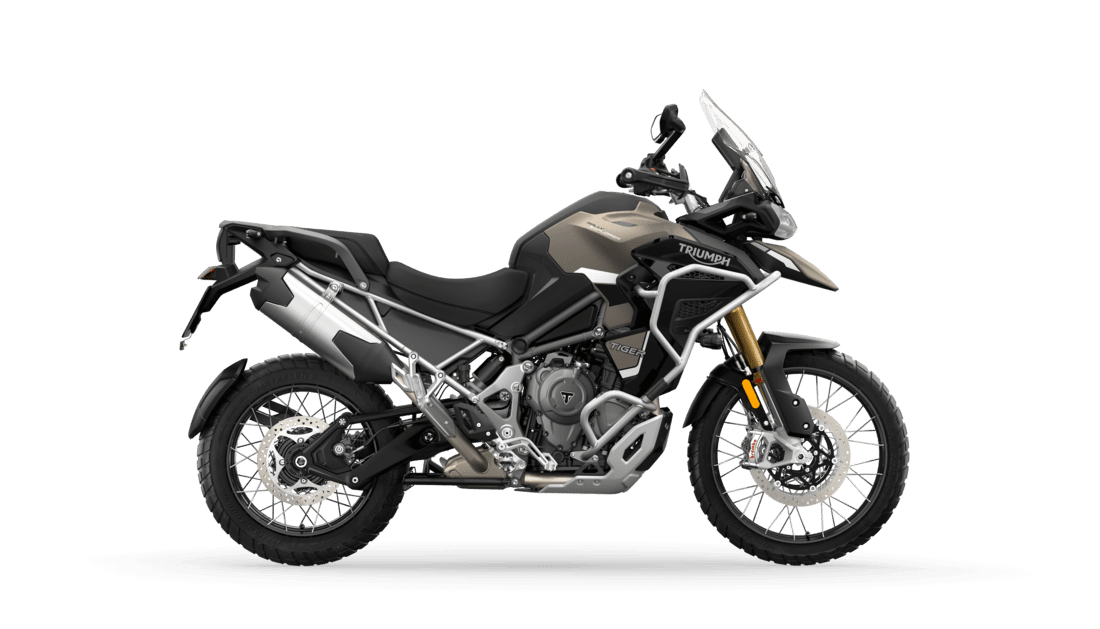

MATTE KHAKI GREEN

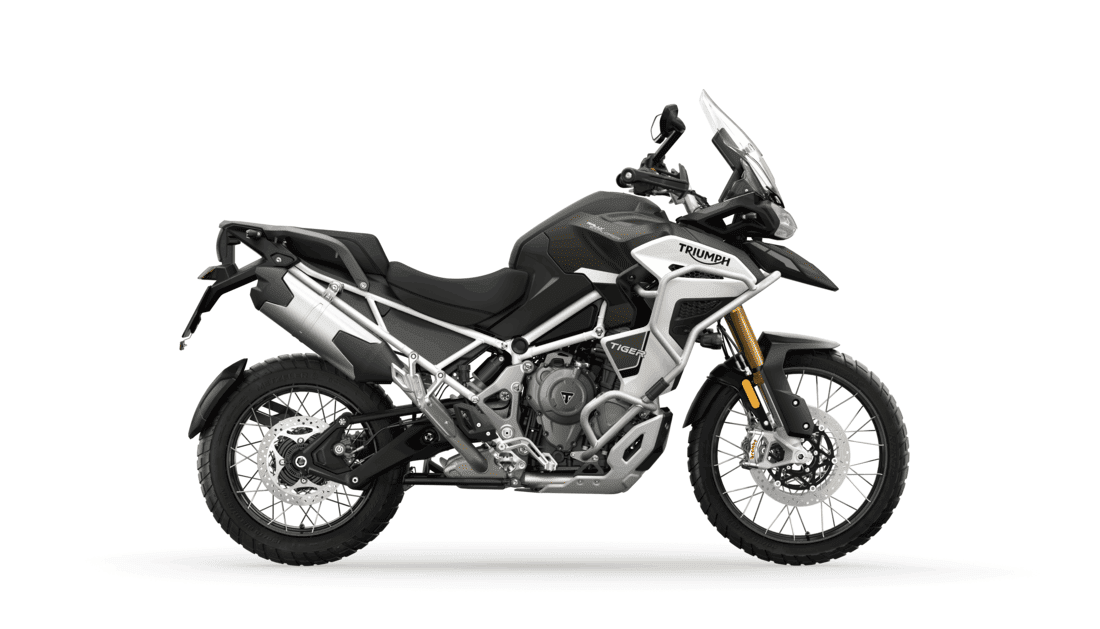

MATT SANDSTORM
2024 Triumph Tiger1200 Rally Explorer
Motorcycle
TIGER 1200 RALLY EXPLORER
With world-beating comfort and all-road capability, the top-of-the-range Rally Explorer is the ultimate large capacity adventure motorcycle.
Starting at $24,895 MSRP
Specs and Features
Price
Price
From $24,895.00
ENGINE & TRANSMISSION
Type
Liquid-cooled, 12 valve, DOHC, inline 3-cylinder
Capacity
1160 cc
Bore
3.54"
Stroke
2.38"
Compression
13.2:1
Max Power EC
147 HP / 150PS (110.4kW) @ 9,000rpm
Max Torque EC
130 NM – 95 Lb/Ft @ 7,000 rpm
System
Multipoint sequential electronic fuel injection with electronic throttle control
Exhaust
Stainless steel 3 into 1 header system with underslung primary silencer and side mounted secondary silencer
Final Drive
Shaft drive
Clutch
Hydraulic, wet, multi-plate, slip and assist
Gearbox
6 speed
CHASSIS
Frame
Tubular steel frame, with forged aluminium outriggers. Fabricated, bolt-on aluminium rear subframe.
Swingarm
Twin sided "Tri-Link" aluminium swingarm with twin aluminium torque arms.
Front Wheel
Spoked (Tubeless). 21 x 2.15in.
Rear Wheel
Spoked (Tubeless). 18 x 4.25in.
Front Tire
Metzeler Karoo Street, 90/90-21 (M/C 54V TL)
Rear Tire
Metzeler Karoo Street, 150/70R18 (M/C 70V TL)
Front Suspension
Showa 49mm, semi-active damping USD forks. 8.66" travel.
Rear Suspension
220mm wheel travel Showa semi-active damping monoshock, with automatic electronic preload adjustment and New Active Preload Reduction feature. Depending on the combined weight of rider, pillion and luggage, this feature could lower the riding height by up to 0.78in when the motorcycle comes to a standstill, offering greater ease and confidence
Front Brakes
Brembo M4.30 Stylema monoblock radial calipers, OC-ABS, twin 320mm floating discs. Magura HC1 span adjustable radial master cylinder with separate reservoir.
Rear Brakes
Brembo single piston caliper, OC-ABS, single 282mm disc. Rear master cylinder with remote reservoir.
Instrument Display and Functions
Full-colour 7” TFT instrument pack with My Triumph Connectivity System
DIMENSIONS AND WEIGHTS
Width Handlebars
Handlebars 33.42", handguards 38.66"
Height Without Mirror
Low screen 58.54", high screen 60.9"
Seat Height
Adjustable 34.44/35.23"
Wheelbase
61.41"
Rake
23.7 º
Trail
4.4"
Tank Capacity
7.92 US Gal
Wet Weight
578lbs
SERVICE
Service Interval
10,000 miles (16,000 km) /12 months, whichever comes first
REFINED T-PLANE TRIPLE ENGINE
Whether you are riding on or off road, the updated T-plane delivers more refinement and better low speed precision and control, with exciting and unmistakable triple character.
UNBEATABLE OFF-ROAD CAPABILITY
Both Rally models come with tubeless spoked 21”/18” wheels and 8.66in of travel, meaning even the roughest terrain is no match for the Tiger.
EXCEPTIONAL LONG-DISTANCE COMFORT
Improved engine balance and a redesigned seat compliment the semi-active suspension and a damped handlebar mounting arrangement for excellent all-day comfort.
DESIGNED FOR GLOBAL ADVENTURES
The lightweight design, excellent weather protection and low maintenance shaft drive provide the ultimate long distance touring package, with the option of 5.2 and 7.9 gallon tanks.
ENHANCED PROTECTION
With durable engine bars, aluminum sump guard and hand guards fitted to every bike, the Tiger 1200 Rally models are built to take on even the toughest adventures.
MORE ADVANCED THAN EVER
The new Active Preload Reduction feature reduces ride height by up to 0.78in when coming to a stop. Blind Spot Radar delivers Blind Spot Assist and Lane Change Assist on the GT Explorer and Rally Explorer.
