Overview
CHROME / DIABLO RED

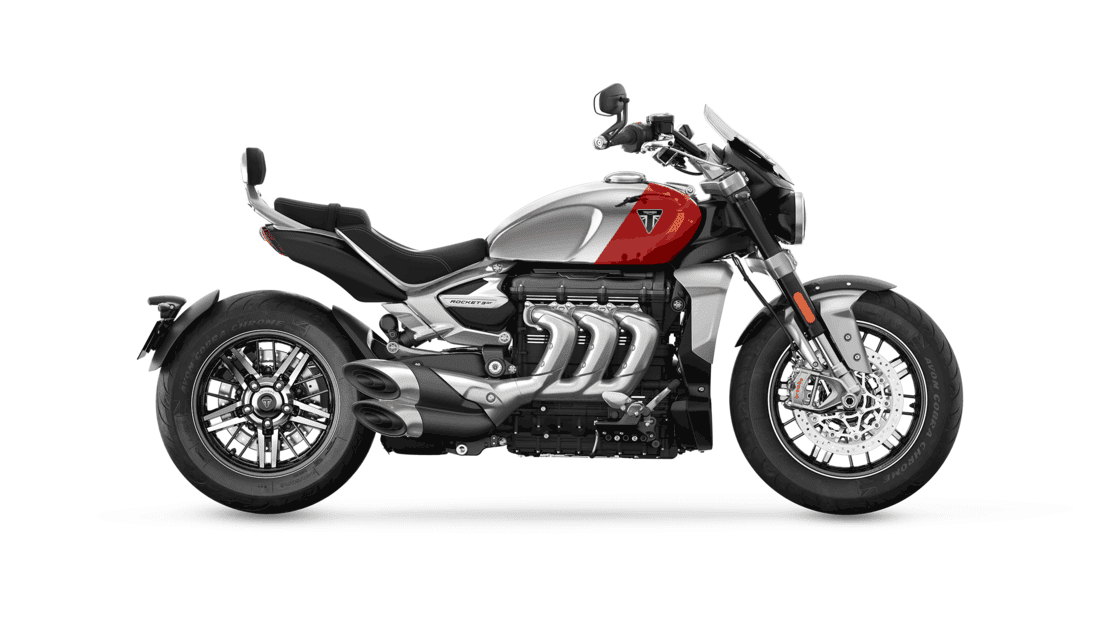

2024 Triumph Rocket 3GT Chrome Edition
Motorcycle
ROCKET 3 GT CHROME EDITION
Record-breaking performance, laid-back attitude and effortless touring capability. Now beautifully swathed in chrome, for one year only.
Starting at $25,495 MSRP
Specs and Features
ENGINE & TRANSMISSION
Type
Inline 3-cylinder, water-cooled, DOHC
Capacity
2458 cc
Bore
110.2
Stroke
85.9
Compression
10.8:1
Max Power EC
165 HP (123 kW) @ 6,000rpm
Max Torque EC
163 LB-FT @ 4,000rpm
System
Ride-by-Wire, fuel injected
Exhaust
Stainless 3-into-1 headers with 3 exit silencer / CAT box
Final Drive
Shaft, bevel box
Clutch
Wet, multi-plate hydraulically operated, torque assist
Gearbox
6-speed
CHASSIS
Frame
Full aluminium frame
Swingarm
Single-sided, cast aluminium
Front Wheel
17 x 3.5in cast aluminium
Rear Wheel
16 x 7.5in cast aluminium
Front Tire
150/80 R17 V
Rear Tire
240/50 R16 V
Front Suspension
Showa 47mm upside-down 1 1 cartridge front forks, compression and rebound adjuster, 4.7in (120mm) travel.
Rear Suspension
Fully adjustable Showa piggyback reservoir RSU with remote hydraulic preload adjuster, 4.2in (107mm) rear wheel travel.
Front Brakes
Dual 320mm discs, Brembo M4.30 Stylema® 4-piston radial monobloc calipers, Cornering ABS
Rear Brakes
Single 300mm disc, Brembo M4.32 4-piston monobloc caliper, Cornering ABS
Instrument Display and Functions
TFT multi-functional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, clock and rider modes (Rain/Road/Sport/Rider-configurable) – Triumph TFT Connectivity System can be added with accessory fitted Bluetooth module
DIMENSIONS & WEIGHTS
Width Handlebars
34.8in (886mm)
Height Without Mirror
42in (1066 mm)
Seat Height
29.5in (750mm)
Wheelbase
66in (1677mm)
Rake
27.9 º
Trail
5.3in (134.9mm)
Dry Weight
648.2lb (294kg)
Tank Capacity
18 Litres
FUEL CONSUMPTION
Fuel Consumption
6.82 l/100km (32.43 MPG)
CO2 Figures
EURO 5 Standard: 158g/km
SERVICE
Service Interval
10,000 miles/12 months service interval, whichever comes first
CHROME TANK
Striking chrome fuel tank with distinctive Diablo Red accent and triangle badge; the centerpiece of this spectacular scheme.
JET BLACK BODYWORK
Sleek Jet Black bodywork contrasts beautifully against the flawless chrome.
MATT ALUMINUM DETAILING
Matt Aluminum Silver mudguard brackets and radiator cowls complete the striking chrome scheme.
CHROME EDITION ACCESSORY KIT
A dedicated Rocket 3 GT Chrome Edition Accessory Kit is also available to add even more individual style. See what’s available via the link in the configurator.
INCREDIBLE POWER & TORQUE
2500cc triple engine - the world’s largest in a production motorcycle. With peak power of 164 HP and 163 LB-FT torque (221 Nm), delivering unparalleled acceleration and performance.
RIDE-ENHANCING TECHNOLOGY
State-of-the-art technology at your fingertips, including TFT instruments with illuminated switch cubes, optimized cornering ABS and traction control, four riding modes, cruise control, and even a USB socket.
